PWM vs MPPT Solar Charge Controller: Which Should You Choose?

Choosing the right solar charge controller is essential for anyone building a reliable off grid system. Whether you’re a homeowner planning to install a solar system to run a house or a business owner exploring sustainable options, the charge controller is the heartbeat of your system. It manages the power flowing from your solar panels into your solar battery bank, ensuring the battery reaches a fully charged state safely, preventing overcharging, and extending battery life. In a complete solar kit with a battery, the controller ensures efficiency and safety.

For those in the USA considering a home solar system with battery storage or a do-it-yourself offgrid solar kit, understanding the key differences between PWM and MPPT charge controllers will help you make an informed decision. In this article, we’ll explore both technologies and guide you to the best choice for your energy needs.

PWM (Pulse Width Modulation) Controllers – Overview

PWM controllers have long been the standard in solar systems. They regulate battery charging by reducing power as the battery fills, helping extend battery life. Ideal for small, low-power setups (like cabins or DIY off-grid kits), they’re affordable, simple, and easy to install.

However, PWM controllers require panel voltage to match battery voltage, limiting system design and reducing efficiency, especially in low sunlight. Higher-end PWM units use inductors for better energy delivery, but cheaper models may lack this feature.

MPPT (Maximum Power Point Tracking) Controllers – Overview

MPPT controllers use algorithms to track the optimal voltage (Vmp) of solar panels, converting it efficiently to charge batteries. This results in up to 30% more energy than PWM, especially in cold or cloudy weather.

Best for full home systems, commercial use, or variable environments, MPPT offers flexibility, faster charging, and long-term performance. It handles higher voltage panels and adapts to changing sunlight conditions, making it ideal for high-demand or evolving systems.

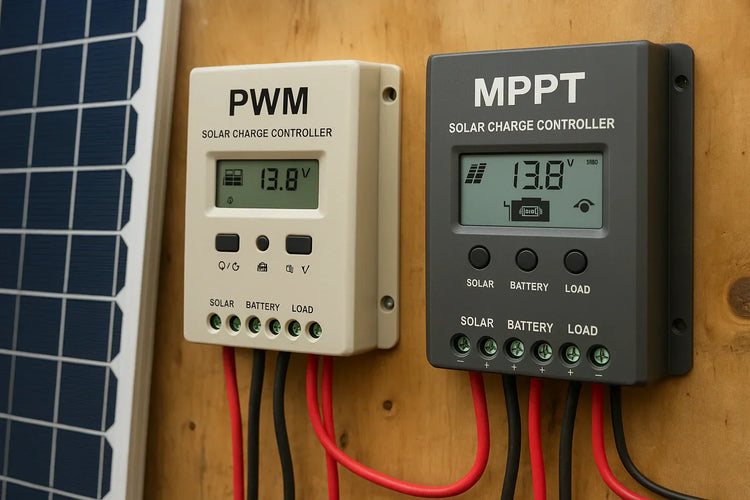

Comparison: PWM vs MPPT Solar Charge Controllers

Battery Bank Considerations

Your battery bank must match the voltage and capacity of your system. Higher-voltage setups (like 24V or 48V) are more efficient for large systems and reduce current draw.

MPPT controllers are ideal for these systems, as they convert excess panel voltage into charging current. PWM controllers are better suited for small setups with matched panel and battery voltage, offering a low-cost and simple solution.

Sizing Your Charge Controller

To choose the right size controller:

• Know your solar array’s max current.


• Add a 25% safety margin for surges or expansion.


• Match the voltage and current specs with your panel and battery setup.



MPPT handles larger power flows and adapts better to changes. PWM is fine for small, consistent setups, but less efficient in varied conditions.

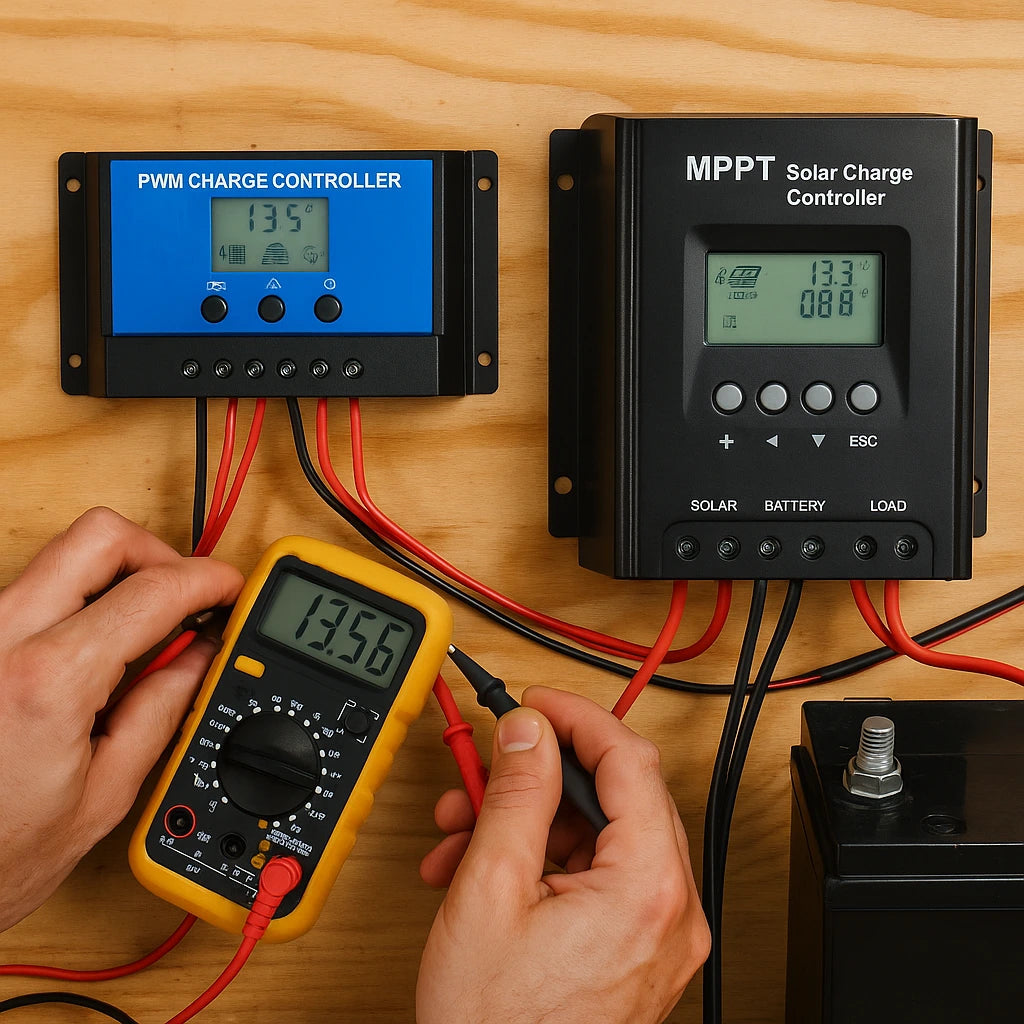

Charge Controller Installation

Proper charge controller installation is key to achieving safe, reliable, and efficient solar charging. Begin by mounting the charge controller in a well-ventilated area, away from direct sunlight, moisture, and dust, to prevent overheating and ensure long-term durability. Use appropriately sized wiring and secure connections between the solar panel array, charge controller, and battery bank to handle the maximum current and minimize voltage losses.

Always follow the manufacturer’s installation and configuration instructions closely. For MPPT charge controllers, you may need to set parameters related to maximum power point tracking, such as battery type, voltage, and charging profiles, to optimize performance. PWM charge controllers are generally more straightforward to install, with fewer configuration steps, but still require correct voltage and current settings for safe operation.

Upper Voltage Limit Considerations

Every charge controller has an upper voltage limit—the maximum voltage it can safely handle from your solar panel array. Exceeding this limit can result in controller malfunction or permanent damage, so it’s crucial to ensure that your solar panels’ open circuit voltage never surpasses the controller’s rated maximum.

MPPT charge controllers are designed to accommodate higher voltage solar panels, making them ideal for systems where the solar array voltage is significantly above the battery bank voltage. They can convert excess voltage into additional charging current, improving overall system efficiency. This flexibility allows for longer wire runs and more versatile system designs without risking controller overload.

PWM charge controllers, however, are more limited in their voltage handling capabilities. They require the solar panel voltage to closely match the battery bank voltage, and may need additional voltage regulation if higher voltage panels are used. Always account for potential voltage drops and surges, such as those caused by cold temperatures or sudden changes in sunlight, to ensure your charge controller remains within safe operating limits.

By carefully matching your solar panel array’s open circuit voltage to your charge controller’s specifications, you’ll protect your system from damage and maintain efficient, reliable solar charging.

Performance in Different Conditions

Solar systems don’t always operate under ideal conditions. Weather, temperature, and panel orientation all affect performance. MPPT controllers consistently outperform PWM models in less-than-optimal environments.

Cold temperatures are where MPPT controllers really excel. Solar panels generate higher voltage in cooler weather, and MPPT technology can capture that extra voltage and convert it efficiently. PWM controllers, on the other hand, can’t take advantage of the extra voltage and waste potential power.

Cloudy days also highlight the MPPT controller’s advantage. It can adapt to fluctuating light levels and continue tracking the most efficient power point. PWM controllers lack this responsiveness, leading to lower energy collection.

When every watt counts, especially in a complete solar kit with battery designed for daily use, MPPT’s ability to extract maximum energy makes a noticeable difference.

Use Case: Solar to Run a House

If you're building a system to power a home, MPPT is the smart choice. It offers better energy use, flexibility, and supports larger battery banks and multiple panels.

PWM may work for very small homes or minimal power needs, but MPPT is better for full independence and long-term savings.

Use Case: Commercial Applications

Businesses benefit most from MPPT controllers. Their higher efficiency means more power, better ROI, and adaptability for larger systems.

PWM may be used in basic setups with limited demand, but MPPT provides the output needed for operations like lighting, refrigeration, and computers, key to reliable, off-grid business use.

System Compatibility and Scalability

When planning an off grid system, it’s important to think not only about your current needs but also about future expansion. MPPT controllers offer significant advantages in compatibility and scalability.

MPPT can work with higher voltage solar panel arrays and convert that energy efficiently for your battery bank. This allows you to use more powerful panels or more flexible wiring configurations, which is especially helpful in larger setups or when roof space is limited.

PWM controllers require solar panel voltage to closely match the battery voltage. This limits panel choices and wiring options, making it harder to expand the system later.

Choosing the Right Controller for Your Needs

So, which controller is right for you? The answer depends on your energy needs, budget, and long-term goals.

Ask yourself:

• Are you powering a small cabin, RV, or basic off grid kit? PWM might be sufficient.


• Are you building a complete solar system to run a house setup? MPPT is likely the better choice.


• Do you expect to expand your system? MPPT offers the flexibility you’ll need.



If sustainability, reliability, and efficiency are top priorities, MPPT stands out as the best long-term investment.

OMOSolar Charge Controllers Overview

OMOSolar provides reliable, efficient, and easy-to-install solar charge controllers. Our MPPT controllers offer smart tracking and high durability. Our PWM options are perfect for budget-conscious users looking for simplicity and reliability.

Explore our solar charge controllers to find the best fit for your off grid system.

Making the Smart Choice for Your Solar Setup

Choosing between a PWM vs MPPT solar charge controller depends on your setup’s size, budget, and performance goals. PWM is affordable and great for simple setups. MPPT is more efficient and better for larger, expandable systems.
