SKU: 15140-BK1G-1

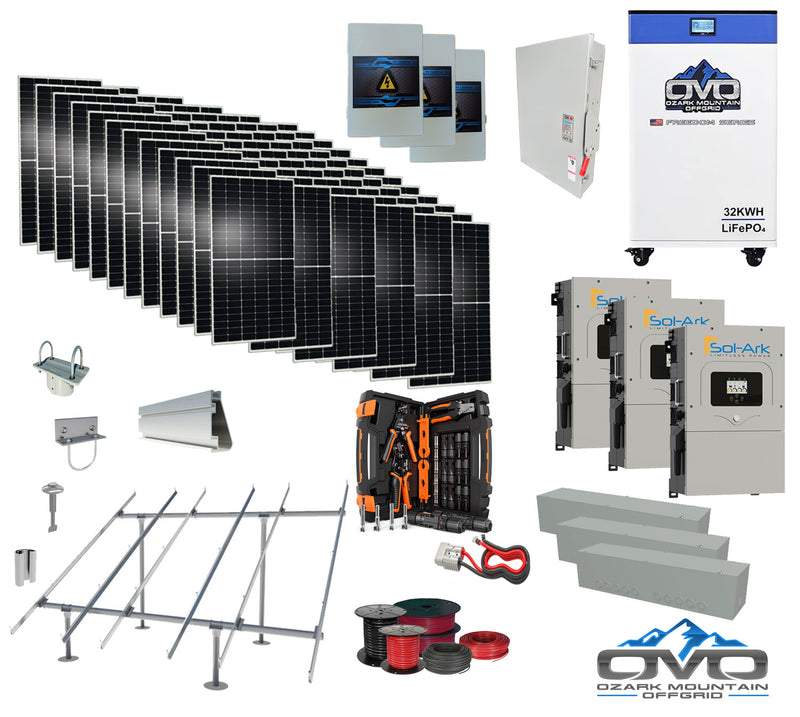

40KW Complete Offgrid Solar Kit + 3x 15K Sol-Ark Inverter + 30KW Lithium Kong Battery +40.15KW Solar with Ground Mount and Wiring

Vendor OMO
Regular price $72,574.30
Sale price $72,574.30 Regular price $76,394.00
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
Type:
This is a pre order item. We will ship it when it comes in stock.

40KW Complete Offgrid Solar Kit + 3x 15K Sol-Ark Inverter + 30KW BatteryEVO Kong Lithium Battery + 40.15KW Solar with Ground Mount Rails and Wiring

This Package is a great package for a Complete Offgrid Home. The Solar Array will produce around 180675Watts per day based on 4.5 hours sun. This size of system generally works great for large sized homes / Farms, and etc that use around 5400 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.

This Lithium Battery Bank is rated for 30KW of storage power.

73x 550W Bifacial Mono Solar Panels (40150 Watt Array)
3x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x 30K BatteryEVO Kong Lithium Battery Bank
1x Complete Set of Iron Ridge GROUND Mount Rails / Top Caps/ Rail Connectors / Fasteners and Bolts
3x Solar PV Combiner Box
2x 500' Spool 10AWG MC4 Solar Array Cabling
1x MC4 Crimper Tool Set
2x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
2x 20' Spool 2/0 AC Main Line
3x Wire Gutter Boxes
1x AC Combiner Box Kit (2x or more Sol-ark Combination kit)
1x Anderson Plug Battery Cable Set for Inverter / Battery Connection

These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty

1x Installation Manual

NOTE: Installation option available. Please see Installation Region Map below to determine what region you are located in. Installation option includes: OMO Solar traveling to your location and do install, site plan and electrical blueprints. Install price quoted through website is for offgrid installations ONLY. If you need grid-tied installation please contact us prior to ordering for custom pricing for your area.

Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty

Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power

Free Shipping on ALL Solar Kits (Lower 48 States Only)
