SKU: NXUS-48150-G1

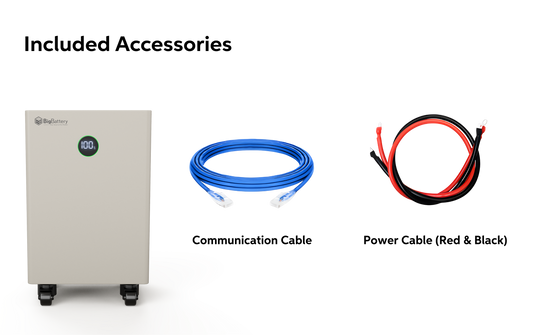

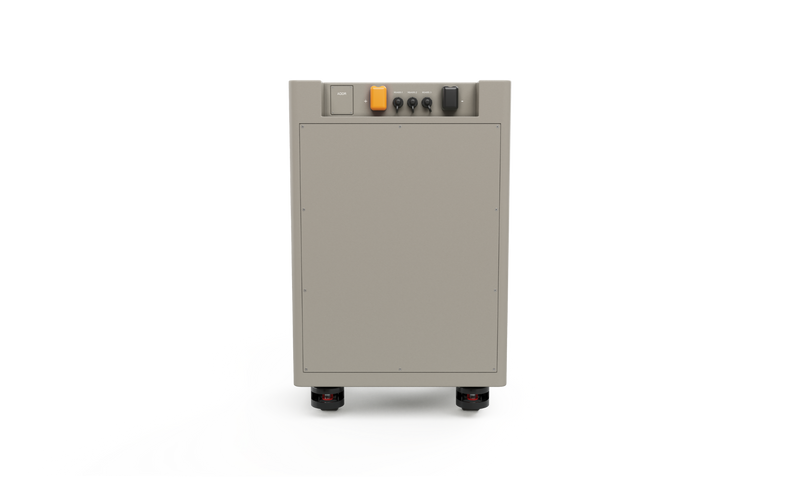

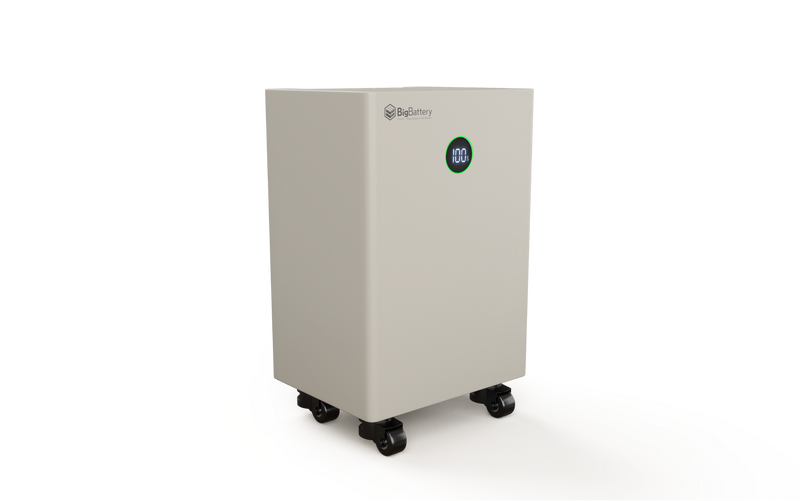

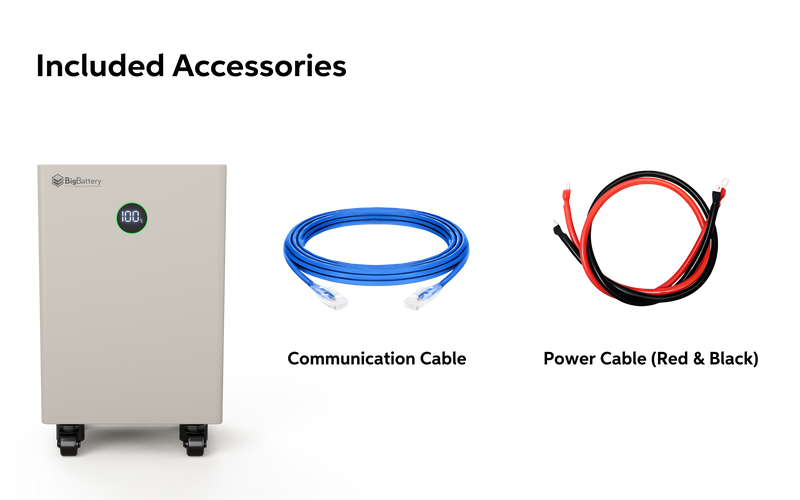

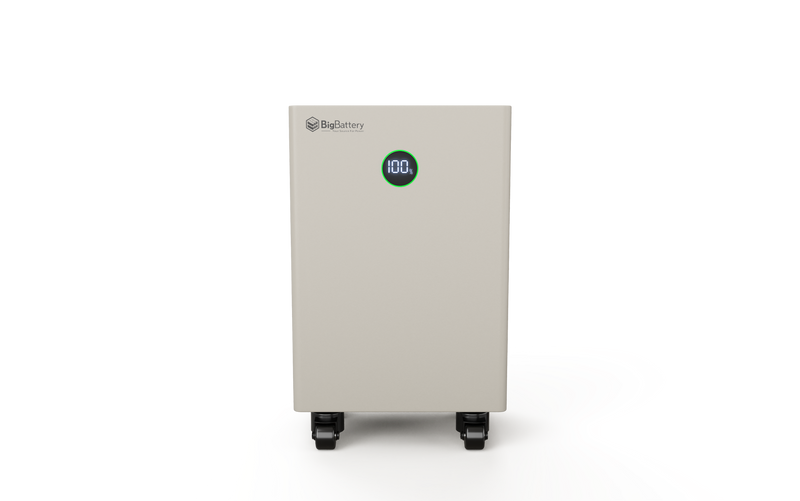

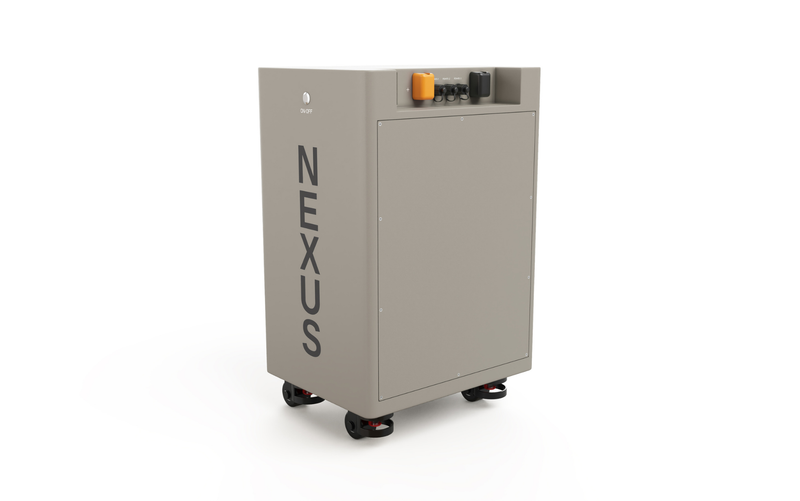

BigBattery NEXUS 48V 15kWh LiFePO4 Battery

Regular price $2,980.00
Sale price $2,980.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The BigBattery NEXUS 48V 15kWh LiFePO4 Battery is a cost-effective, high-capacity energy storage solution for off-grid homes, cabins, and backup power systems. Designed with a compact, portable, floor-standing form factor, the NEXUS delivers reliable, uninterrupted power using advanced LiFePO4 chemistry for long service life, safety, and efficiency. Ideal for installations in garages, tech closets, cabins, or sheds, it offers flexible placement without complex mounting.

Built with an integrated Battery Management System featuring quadruple safety protections, the NEXUS ensures dependable operation in demanding environments. Each unit includes a self-heating function and integrated aerosol fire suppression for added safety and cold-weather performance. Scalable up to 225 kWh, the 48V NEXUS 15 kWh battery is well suited for off-grid solar systems, commercial backup power, and home emergency power supply (EPS) applications where affordability, scalability, and reliability matter most.

NEXUS Battery Specification Sheet

Battery Specifications

Battery Specifications: NEXUS 15KWh
System Voltage: 48V
Nominal Voltage: 51.2V
Chemistry: LiFePO4
Usable Energy (kWh): 15kWh
Ah Capacity: 300Ah
Cell Configuration: 16S1P
Max Continuous Discharge Current: 140A
Max Continuous Power: 7.6kW
Max Discharge Peak Current: 270A(1s)
Max Charge Current: 140A
Charging Voltage Range: 53.5V-57.6V
Operating Voltage Range: 48V-57.6V
Max Charge Voltage: 57.9V
Suggested Low Voltage Cutoff: 50.8V
Charge Temp Range: 32°F to 113°F
Discharge Temp Range: -4°F to 113°F
Optimal Discharge Temp: 59°F to 95°F
Storage Temp Range (SoC >50%):(1 month: -4°F ~ 113°F | 3 months: -4°F ~ 95°F | 6 months: -4°F ~ 77°F)
Humidity Range: 10%-95% (No Condensation)
Weight (lbs): ~315 lbs
Dimensions (WxHxD): 19.7 x 27.5 x 15.7 in (500×700×400 mm)
Altitude Limit: <2000m
Max Connections: 15 in parallel (up to 225kWh)
Communications: RS485 / RJ45 / CAN
Protection Rating: IP54
Installation:Indoor Floor-standing
