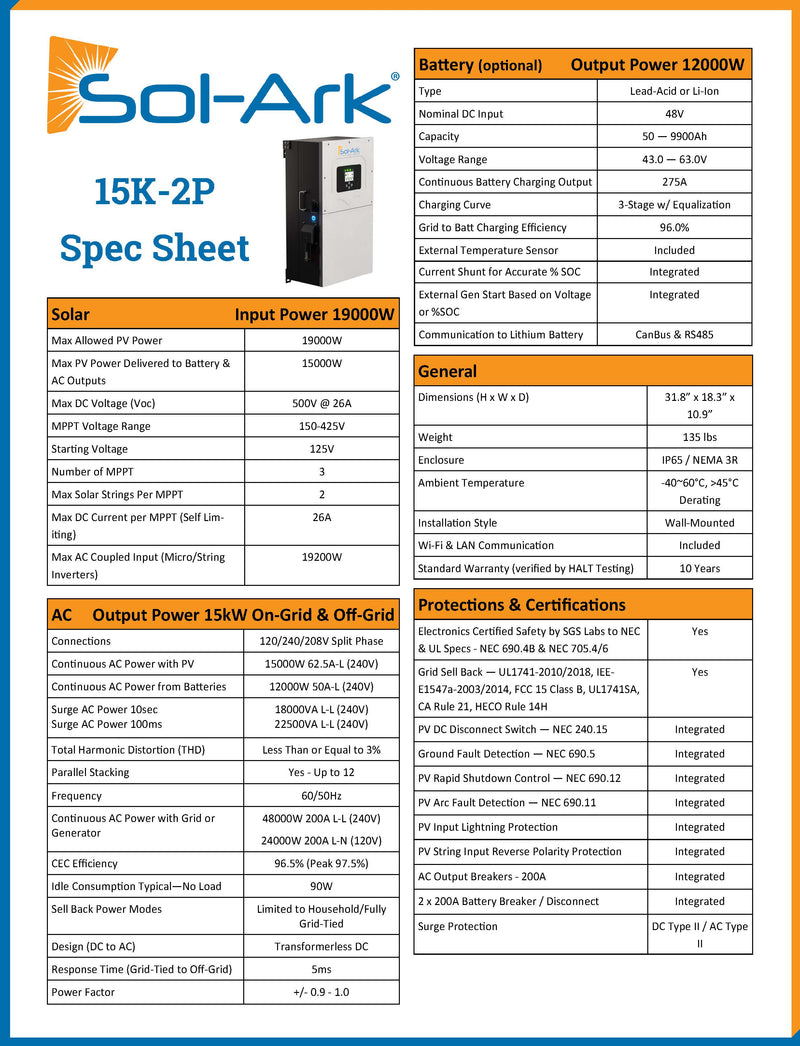

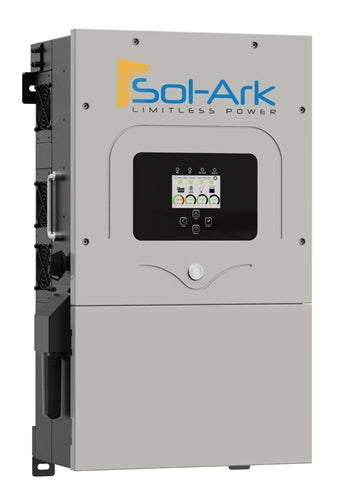

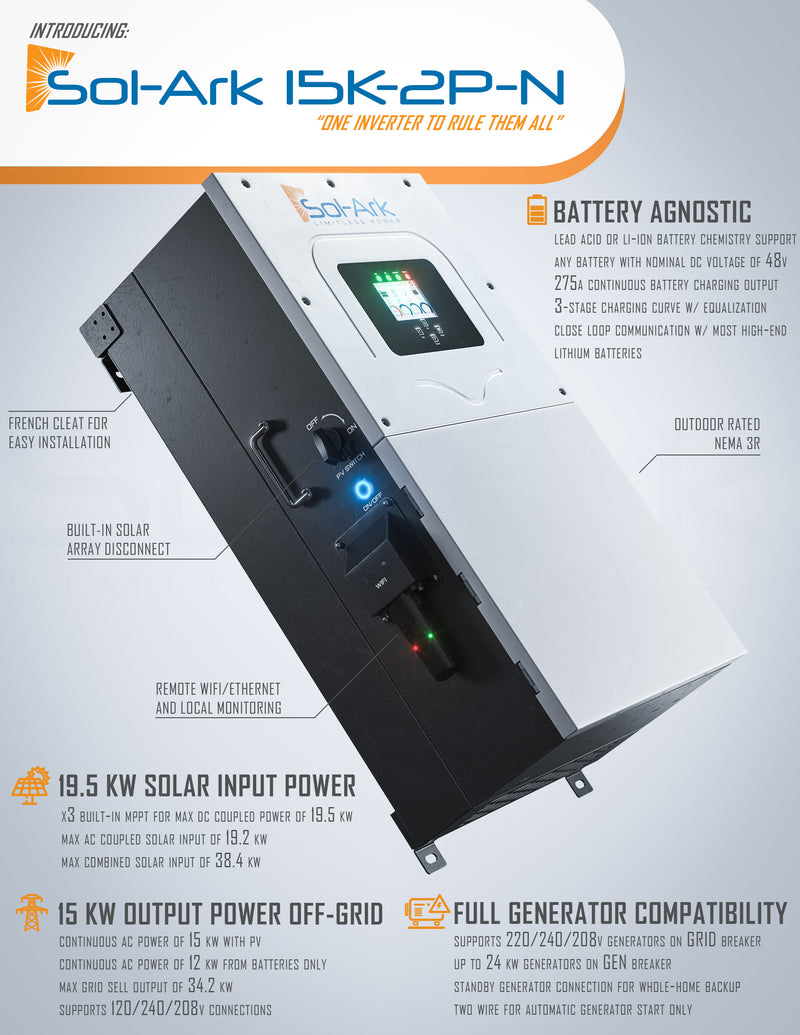

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
The 15k Model is a great upgrade vs the 12k unit. This unit allow the use of much larger wire and can pass through the full 200A service when grid-tied. The lugs in this unit are big enough to handle 4/0 Wire
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Offgrid Output rating w/ Batteries - 12KW Continuous
Offgrid Output rating w/ PV - 15KW Continuous
Built in MPPT Charge Controller - 3x MPPT Inputs (26A per input)
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty
2x 200A Battery Breakers
Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
Output - 120/240 Split Phase
The 15k Model is a great upgrade vs the 12k unit. This unit allow the use of much larger wire and can pass through the full 200A service when grid-tied. The lugs in this unit are big enough to handle 4/0 Wire
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Offgrid Output rating w/ Batteries - 12KW Continuous
Offgrid Output rating w/ PV - 15KW Continuous
Built in MPPT Charge Controller - 3x MPPT Inputs (26A per input)
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty
2x 200A Battery Breakers
Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
