"THE ULTIMATE" is just what it sounds like — the same great OMO complete system you're used to, now equipped with the ultimate upgrades and add-ons. "THE ULTIMATE" includes Sol-Ark’s newest 18K hybrid inverter, Kubota’s GL14000TM Generator, a full system EMP Shield kit, and Sinclair’s season adjustable ground mount system, creating a robust, full-featured system designed to provide added peace of mind with improved power system security and reliability.
This package is an excellent choice for a complete offgrid home. This lithium battery bank will give you 32,000 watts of usable energy, and the solar array will produce around 138,600 watts per day based on 4.5 hours of sun. This size of system generally works well for large sized homes, farms, and similar properties that use around 4,158 kWh per month. This system is built to be scaled up for future additions of panels or batteries.

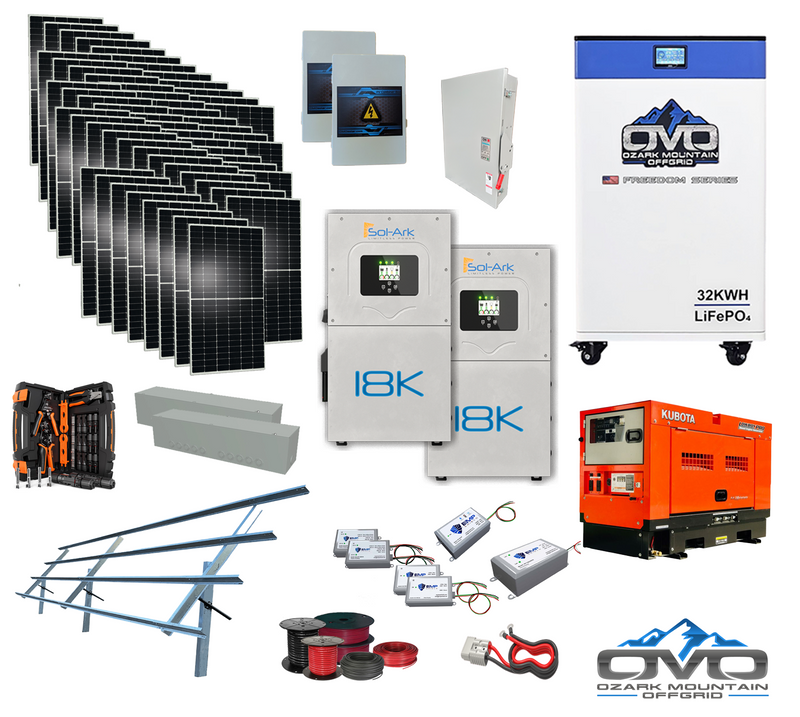

Included Components
-
56x 550W Bifacial Mono Solar Panels (30,800 Watt Array)
-
2x Sol-Ark 18k-2P Hybrid/Offgrid All in ONE 48V Inverter
-
1x OMO 32KWH 48V Freedom Series Heated Battery with Bluetooth and LCD Readout
-
1x Kubota Lowboy Pro GL14000 Diesel Generator with 2 Wire Start Module
-
1x EMP Shield Kit for up to 35KW Sol-Ark Solar System
-
1x Complete Sinclair "Season Adjustable" SKY RACK 2.0 Ground Mount System
-
2x Solar Combiner Box (built for future expansion of additional panels)
-
1x AC Combiner Box Kit (2x or more Sol-Ark combination kit)
-
1x Anderson Plug Battery Cable Set for inverter/battery connection
-
2x Gutter Box
-
2x Spool 500' PV Direct Burial 10AWG Solar Wire
-
2x Spool 100' AC Output/Input/Generator Cabling – 6 AWG
-
2x 20' Spool 2/0 AC Main Line
-
1x MC4 Crimp Kit
-
1x Installation Manual
Solar Panel Details
These solar panels are bifacial with double glass. Bifacial technology enables additional energy harvesting from the rear side of the panel, offering up to 25% more energy production. They also generate higher power output in weak light conditions, such as cloudy, hazy, or early-morning environments.
These panels offer high wind and snow resistance, rated at 5400 PA snow load and 2400 PA wind load. They also include a 30-year power warranty.
Sol-Ark 18K Inverter Boasts
Most Backup Power
-
18 kW AC
-
200A Grid Pass-Through
Multiple Solar Options
-
6x DC Solar Ports
-
3x Full Sized MPPT
-
36A Per MPPT
Flexible Battery Choice
-
350A Battery Charger
-
2x 48V Battery Ports
-
Upgrade UL9540 Options
Seamless Grid Control
-
Multi-Season Time-of-Day Settings
-
Automatic 5ms Transfer Time
-
Virtual Power Plant Ready
Generator Ready
-
Dedicated GEN Port
-
Generators or AC Coupling
-
AutoStart Capable
10-Year Sol-Ark Warranty
