Complete High Flow Solar Pond Aeration - Complete System with Solar Panels & LiFePO4 Battery

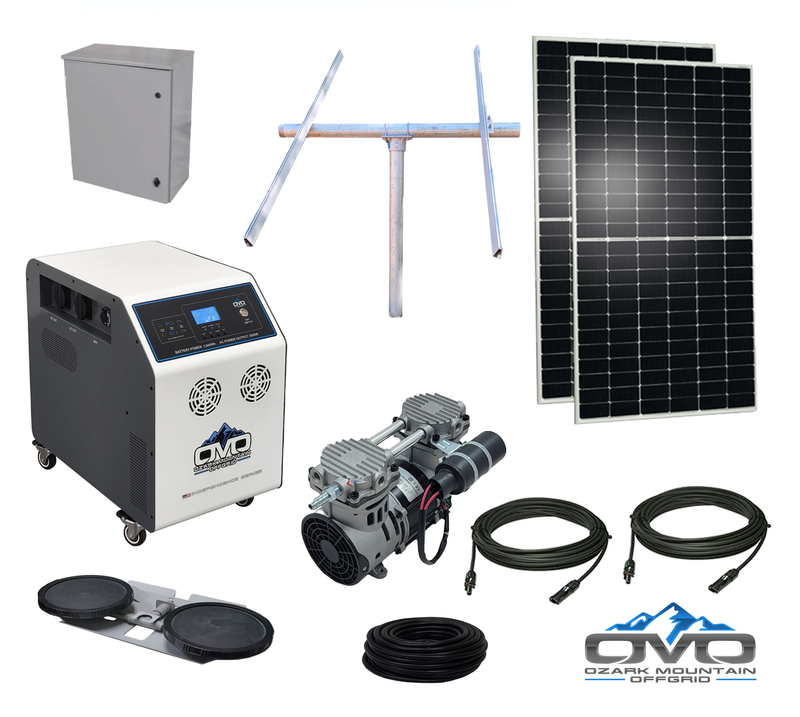

Includes:
OMO's Independence Series Portable Power Station
Professional Deep Water High flow, high capacity rocking piston air compressor
2x 550W Bifacial Mono Solar Panels (1,100W Array)
1x Pole Mount System for 2x Panels & Equipment Cabinet
2x 20'+20' MC4 Solar Panel Cables
Pole Mounted Enclosure for Power Station & Pump System
Dual 10" EPDM Rubber Diffuser Discs
100' 3/8" Weighted Black Tubing Hose
All necessary Fittings and hardware
The heart of our new High Flow Solar Pond Aeration System is OMO's Independence Series Portable Power Station. With its 25.6V 150Ah (3840Wh) LiFePO4 battery and a 3kW pure sine wave inverter and MPPT controller integrated, the Independence is the perfect match to the professional deep water high flow, high capacity rocking piston air compressor in our system.

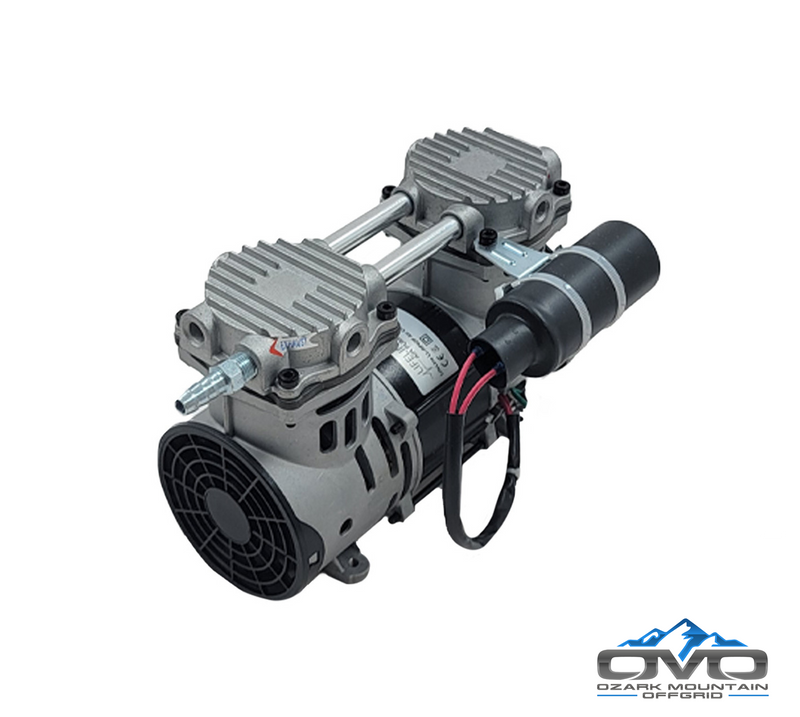

Aeration Compressor is a High Flow Unit. These are designed to be low maintenance units for continuous operations.
- High flow, high capacity rocking piston air compressor delivers 3.9 CFM @ 5 PSI maximum operating depth of 40 feet. Operating temperature range of -5 to 175 Degrees Fahrenheit with a overheat protection at 290 Degrees Fahrenheit
- A Pump You Can Trust - Air filter with replaceable, debris-trapping element delivers clean, pure air. Dependable, reliable, low maintenance design for continuous or intermittent operation.
- Ultimate Performance - Volts - 120; Amps - 3.5; Hertz - 60; CFM @ 5 PSI - 3.13. Pump has aluminum allow body for maximum durability and copper motor for energy efficiency.
- Dimensions - 10 inches long, 6 inches wide, 7 inches high. Includes air filter with replaceable element, 50 PSI pressure relief valve, and isolation mounts. 3/8 inch weighted air hose recommended (not included)
- 120-volt, 3.5-amp motor. 6-foot double insulated power cord.
- 2 Year air compressor warranty.

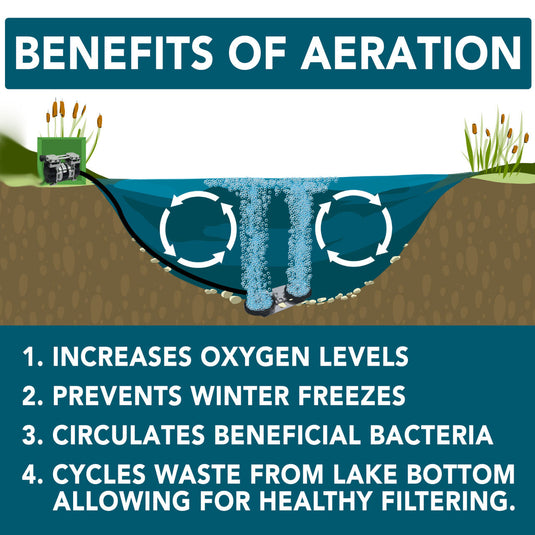

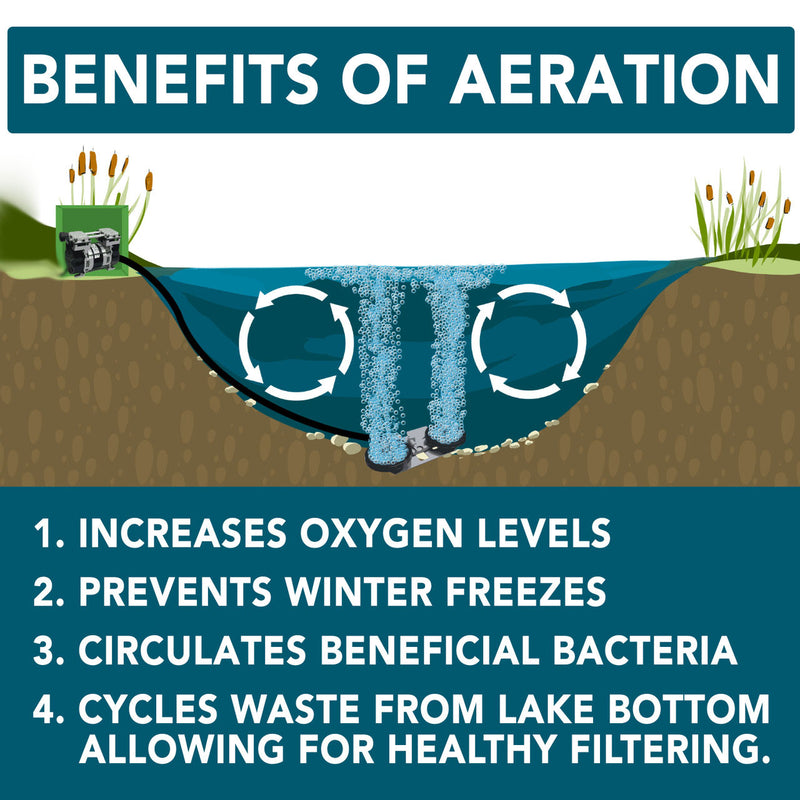

Diffusers produce high Oxygen Transfer Microbubbles to keep fish healthy and the water clear.
- Lowers levels of Dissolved toxic gases. Reduces sludge build-up on pond floor
- Helps maintain moving water to prevent icing in winter months.
- Reduces Unpleasant Odors
- Reduces Mosquito Population
Pole Mounted Enclosure for Power Station & Pump System is UL 1, 3R, 4, 12 and IP66 rated.
Applications For Solar Aeration
- Lakes
- Ponds
- Livestock Watering
- Golf Courses Ponds
- Fish Farms
- Algae Control
- Weed Control
- Habitat Management
- De-Icing
- Parks
LIFETIME SUPPORT - You will be able to talk to someone that has actually installed and used this package or a similar setup. Unlike other companies that have a "sales team" with no field experience, our crew believes in what we sell and will always provide support for purchasing, installation and operations of the equipment. Our in house team has years of living off grid so give us a call or email us with any questions!
