24V Solar Water Pump

24V DC Submersible Deep Well Water Pump

1.6GPM / 4"


Max Lift 230FT / Max Submersion 100FT

4 Amps Max

Waterproof Cable line allows submersion in creek, well or any water source. Easy to wire and runs off a Single Solar Panel that is rated at 24V. It is recommended to run 2x Solar panels to provide power during overcast conditions.

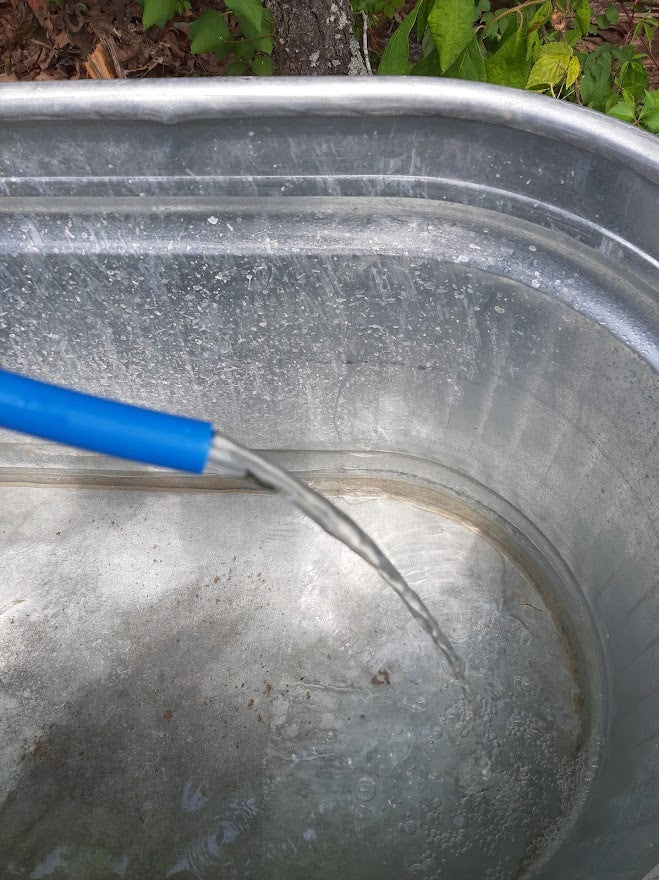

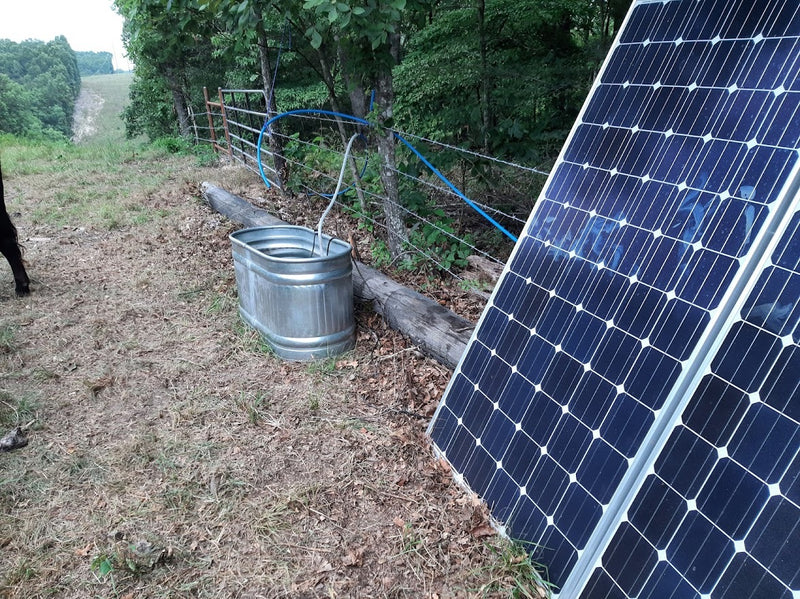

Photos are shown with typical install with these pumps. The photos shown here is of a real world working example of this water pump Daisy Chained together running off 2x 300W Solar Panels and pumps water close to 300' in height and over 1500' in distance. Water is fed from stream at the bottom of the valley with a second 24V pump and is pumped up to the holding tank to achiece 2500' distance of transferring water to a Cattle Corral in the Ozarks.
