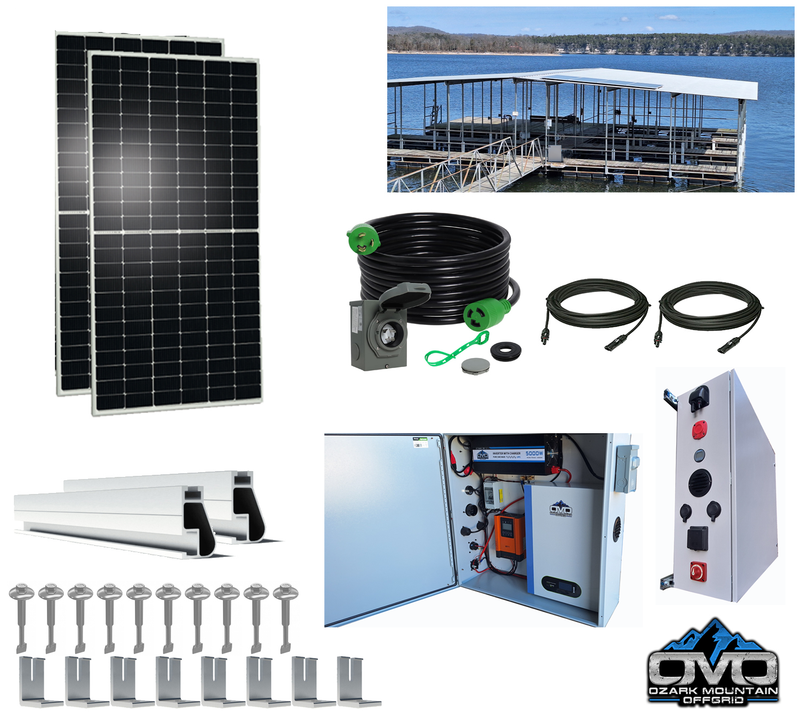

BOAT DOCK Offgrid Solar Kit - 5.9KW Lithium 24V Battery + 5KW Pure Sine Inverter/Charger + 1100 Watts Solar
This Package is a great package for someone who is looking to take their Boat Dock Offgrid. Maybe new laws is eliminating Shore Power availability or you are just looking to save money on that power bill. Unlike the competition, that typically use flooded lead acid or AGM batteries, this kit uses a BatteryEVO Lithium Battery bank designed for solar applications. It will give you 5900 Watts of usable Energy. The Solar Array will produce around 4950 Watts per day based on 4.5 hours sun. This size of system generally works great for Docks that use around 115 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.
2x 550W Bifacial Solar Panels (1100 Watt Array)
1x Complete Set Roof Mount Rails by Iron Ridge

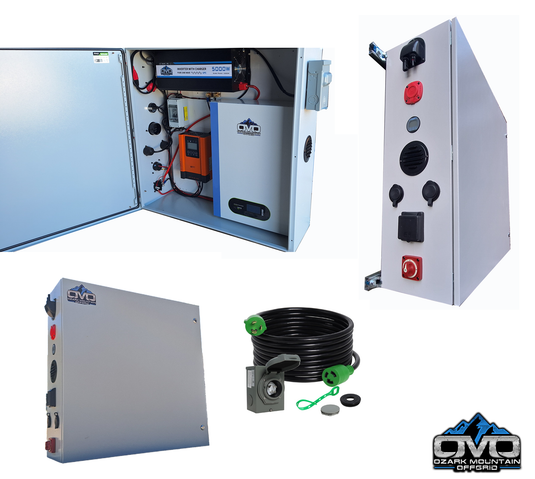

1x Complete Pre-Wired ready to deploy Portable System.
1x Mountable Weather Resistant Lockable Box (Dimensions 36"H x 36"W x 12"D)
1x 5000W Pure Sine Inverter 120V Output / With AC Input - Built In Charger (Surge Capability for 10000W Peak)
(Can be Grid Tied for UPS functionality or Used for Generator Input on AC Input side)
1x 5.9kWh BatteryEVO 24V Lithium Battery
1x 60A MPPT Charge Controller
1x Solar Combiner Box with PV breaker
1x Master ON/OFF switch located outside of Box
2x 120V Waterproof Exterior Plugs
1x 120V Waterproof Exterior Generator/Shore Power Input Port (Emergency Charging Method)
1x Waterproof Smart Battery / Volt / Amp Display Monitor located outside of Box
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more if mounted in Ground Mount Setup.) These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty
1x Installation Manual
Will Run most common Boat Dock appliances
Boat Lifts
Onboard Chargers
Fans
TV's
Lights
Refrigerator
Freezer
Cell Phones / PCs / Tablets
Smaller AC Systems
Is this the right Solar System for me?
According to the US Energy Information Administration, the average power usage in the USA per home is around 877KW per Month. Take this number into consideration when looking at our DIY Solar kits. All of our kits are expandable so you can add to your array at any time.
How to Figure how much power this system will make:
Based in the Midwest we average around 4.5 hours of Peak Sun Energy per day. It will be less in the northeast area of the US and more in the SW area of the US. This is how the Solar Production for Daily and Monthly Totals is calculated.
KIT AND INSTALLATION REGION
Installation only available on select kits.
