Load image into Gallery viewer, 12KW Complete Offgrid Solar Kit - 30kWh Lithium Battery + 15K Sol-Ark Inverter +13.2KW Solar with Ground Mount Rails and Wiring
Load image into Gallery viewer, 12KW Complete Offgrid Solar Kit - 15kWh Lithium Battery + 15K Sol-Ark Inverter +12.96KW Solar with Ground Mount Rails and Wiring
Load image into Gallery viewer, 12KW Complete Offgrid Solar Kit - 30kWh Lithium Battery + 15K Sol-Ark Inverter +13.2KW Solar with Ground Mount Rails and Wiring

SKU: 15112-BK1G-1

12KW Complete Offgrid Solar Kit - 30kWh Lithium Battery + 15K Sol-Ark Inverter +13.2KW Solar with Ground Mount Rails and Wiring

Vendor OMO
Regular price $33,387.00
Sale price $33,387.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
Type:
This is a pre order item. We will ship it when it comes in stock.

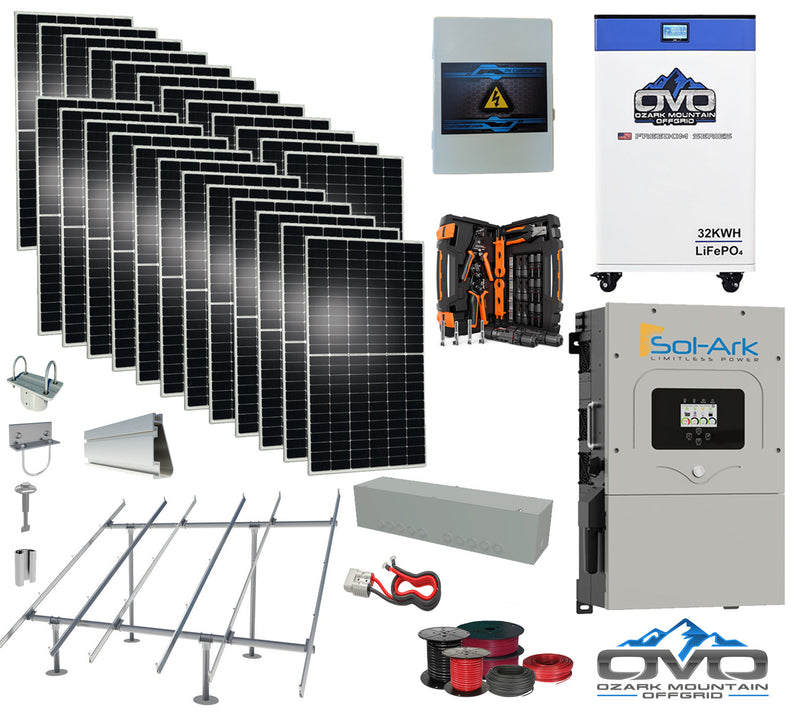

12KW Complete Offgrid Solar Kit - 30kWh Lithium Battery + 15K Sol-Ark Inverter + 13.2KW Solar with Ground Mount Rails and Wiring

This Package is a great starter package for a Complete Offgrid Home. This Lithium Battery bank will give you 30000 Watts of usable Energy. The Solar Array will produce around 59400Watts per day based on 4.5 hours sun. This size of system generally works great for cabins, smaller - Mid sized homes, and etc that use around 1100-1700 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.

24x 550W Bifacial Mono Solar Panels (13200 Watt Array)
1x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x 30kWh BatteryEVO 48V Kong Elite Lithium Battery
1x Complete Set of Iron Ridge GROUND MOUNT Rails / Top Caps / Rail Connectors / Fasteners and Bolts - Aluminum
1x Solar Combiner Box (Built for future expansion of additional panels)
1x Anderson Plug Battery Cable Set for Inverter / Battery Connection
1x Gutter Box
1x Spool 500' PV Direct Burial 10AWG Solar Wire
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
1x Spool 20' 4/0 AC Main Line
1x MC4 Crimp Kit

These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty

Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else

1x Installation Manual

NOTE: Installation option available. Please see Installation Region Map below to determine what region you are located in. Installation option includes: OMO Solar traveling to your location and do install, site plan and electrical blueprints. Install price quoted through website is for offgrid installations ONLY. If you need grid-tied installation please contact us prior to ordering for custom pricing for your area.

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty

Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
