SOLAR- POWERED - 16' tandem axle V-nose trailer is a fully self-sufficient power facility on wheels. This BASE MODEL trailer can serve many remote power/off grid needs. From powering emergency response operations, off grid events, base camp power, off grid construction, off grid cabin power, and more. If you can tow the trailer to the location and the solar array has access to sunshine you've got power. This system is easily scalable and can be upgraded to meet your power requirements. In addition to power from the solar array trailers can also be connected to shore power or a generator to charge batteries when needed.
Includes:

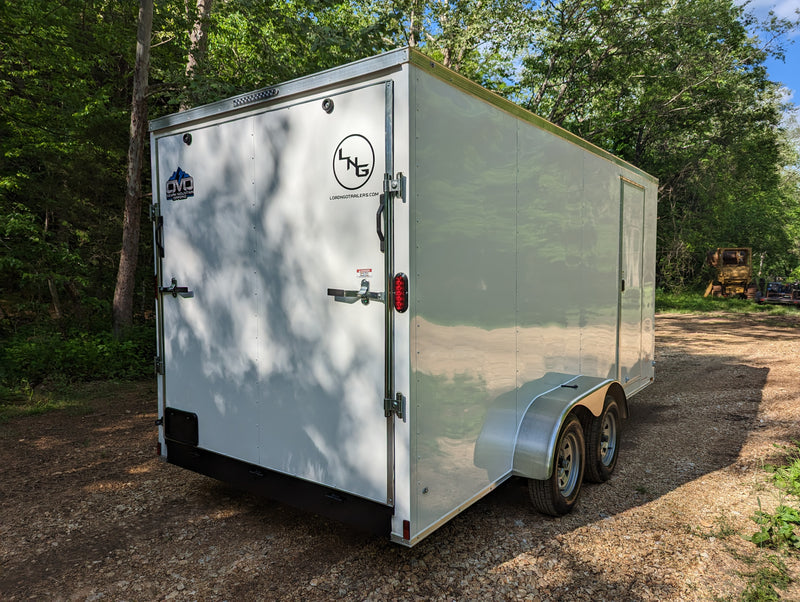

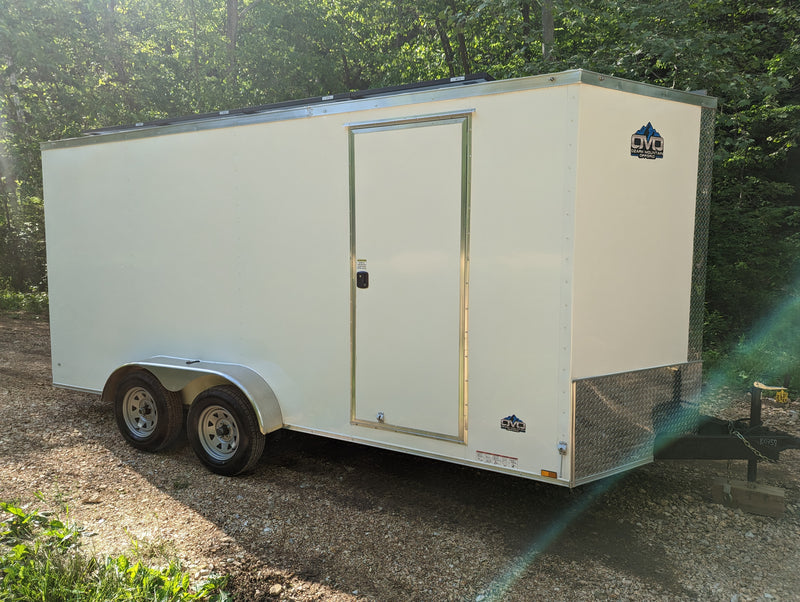

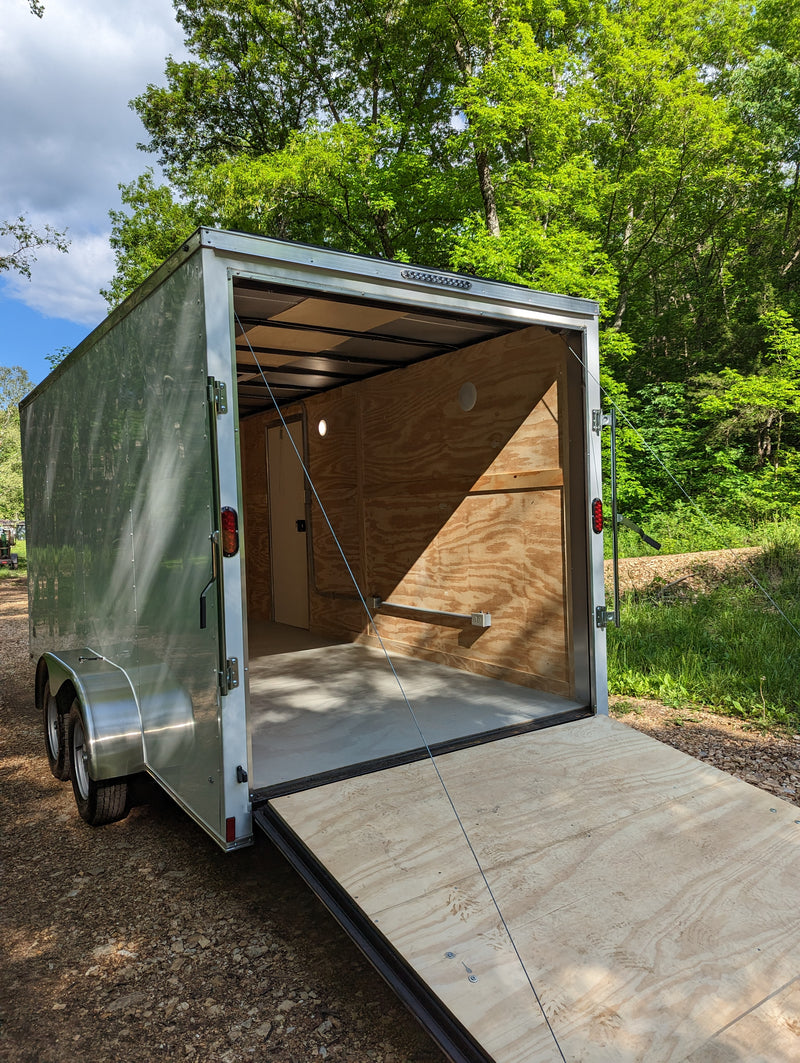

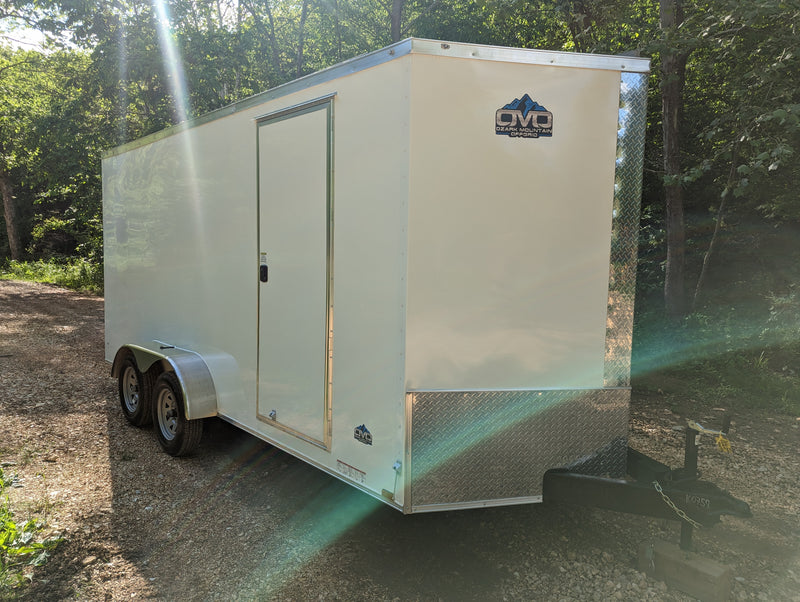

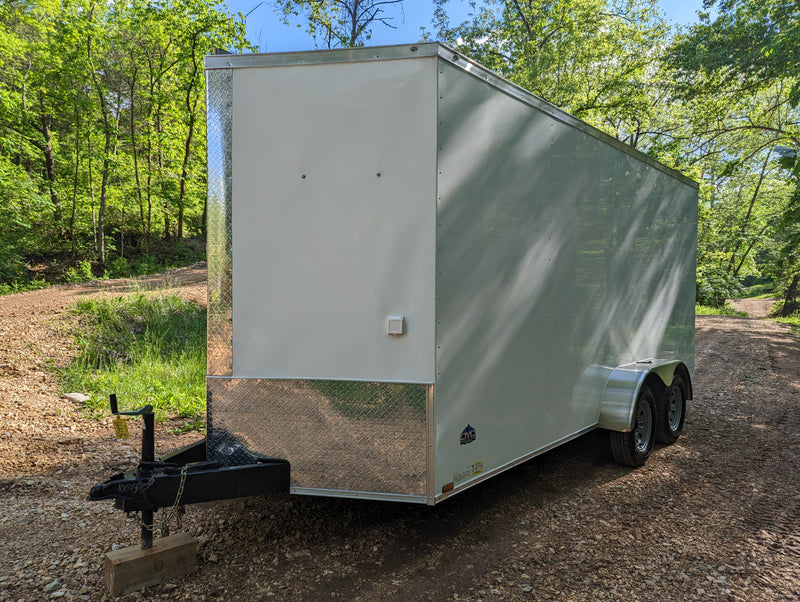

1x 16' Tandem Axle V-Nose Trailer w/ RV style walkthrough door and ramp

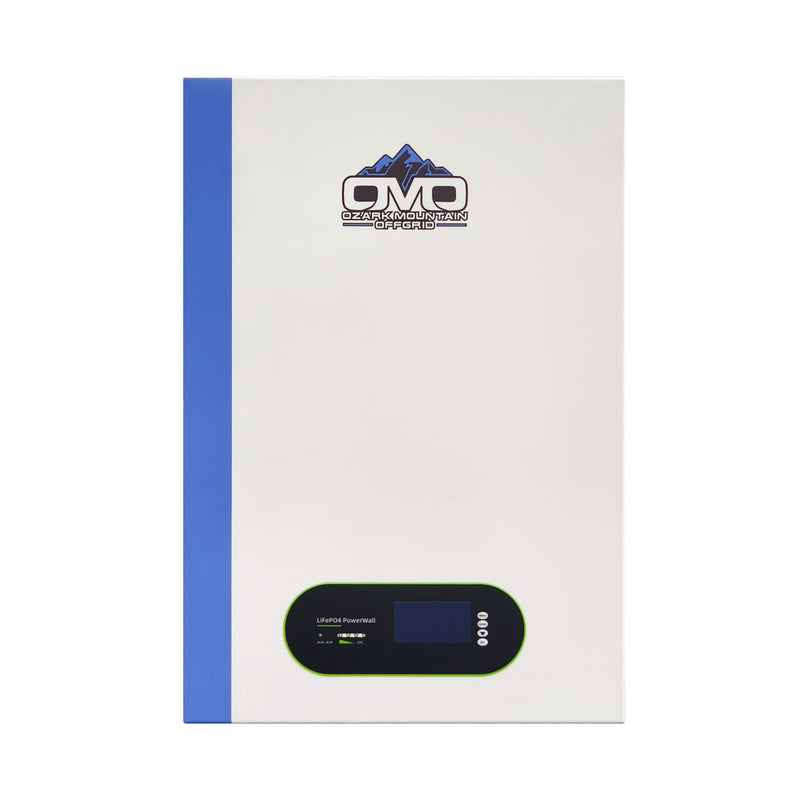

1x 5.12kWh OMO 48V Patriot Heated/Bluetooth Lithium Battery with wall bracket
4x 380W SOLAR Panels roof mounted (1520 Watt Array)
60AMP MPPT Charge Controller
OMO DC/AC 5000w 48V (10000W Peak) Pure Sine Wave Inverter
AC Breaker Box w/ 4x 110V Standard Plugs
EPOXY Coated Floor
Battery Specification Sheet
Completely wired with AC plugs throughout trailer. All runs from power generated from sun. AC shore power also available on this model
Price Shown is for BASE Model. Additional custom features are available for additional cost.
Some optional upgrades that are available:
- Lift Kit with larger tires for more ground clearance
- Additional portable solar array for more power generation
- Air conditioning/heat or Mini Split
- Additional Modules for increased Battery Storage
- Sol-Ark Inverter Upgrade
- Instant Hot Water Option
- Onboard Air Compressors
- Custom Counters and Cabinetry
- Built in Paint Booths, Hydro Processing Systems
. . . and more. Contact us to discuss your needs and OMO will build a solar trailer to meet them.
White Trailer Shown in images - Other colors available.
Pickup or Shipping Available - Please Contact us for more info on Shipping .
KIT AND INSTALLATION REGION
Installation only available on select kits.
