Sol-Ark 15K / SOLAR- POWERED - 20' tandem axle fully self-sufficient facility
This 20' x 8.5' Enclosed SOLAR POWERED Offgrid Self-Sufficient Trailer is equipped with the latest SOL-ARK 120V/240V AC 15K Inverter and 32KW of Lithium Battery Storage. With solar capabilities and offgrid functionality, this trailer provides reliable power on-the-go. Perfect for offgrid enthusiasts and those looking for a sustainable energy option. This unit is capable of powering the entire Home. It is also well suited for emergency response operations, off grid events, base camp power, off grid construction, and anywhere that more power is needed. If you can tow the trailer to the location and the solar array has access to sunshine you've got power. This system is easily scalable and can be upgraded to meet your power requirements. In addition to power from the solar array trailers can also be connected to shore power or a generator to charge batteries when needed.
1x 20' Tandem Axle V-Nose Trailer w/ RV style walkthrough door and ramp

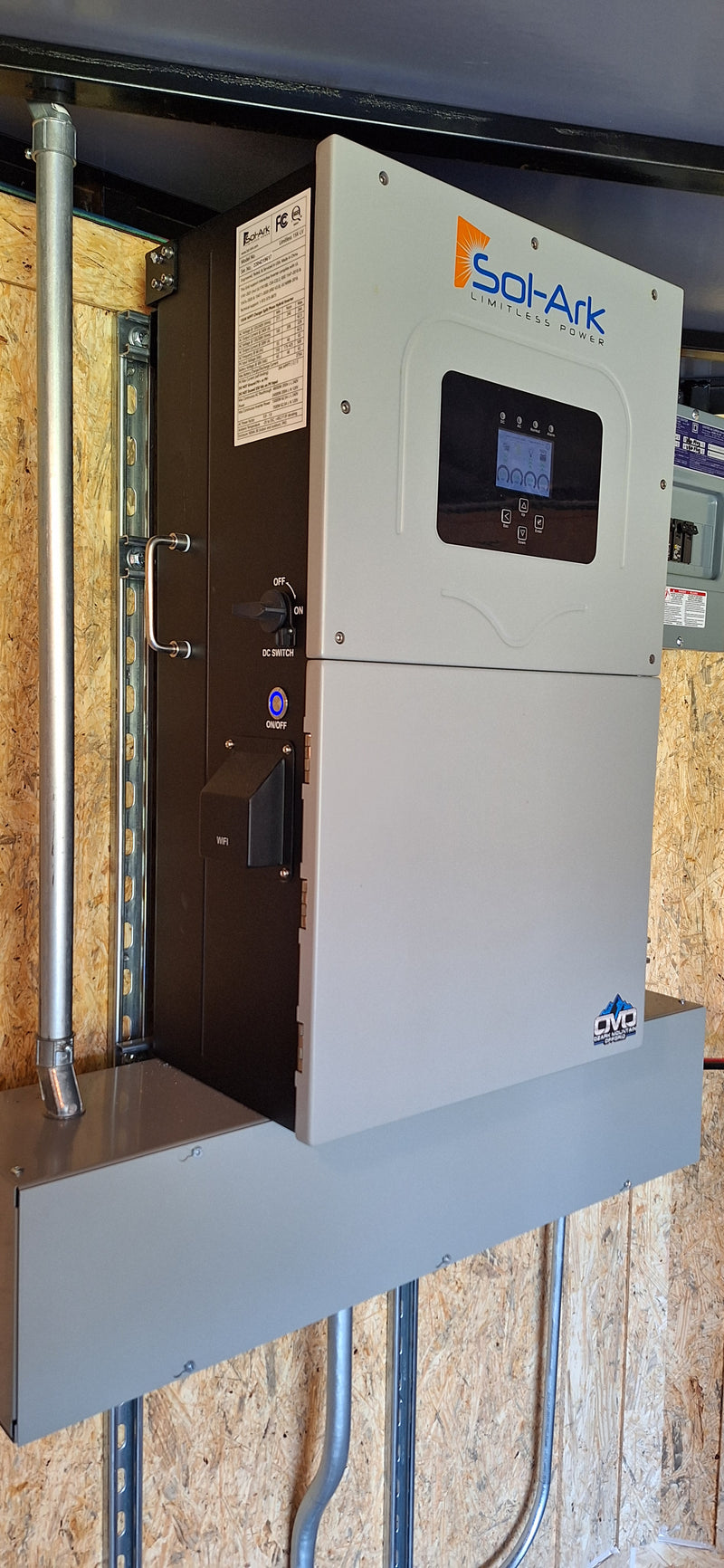

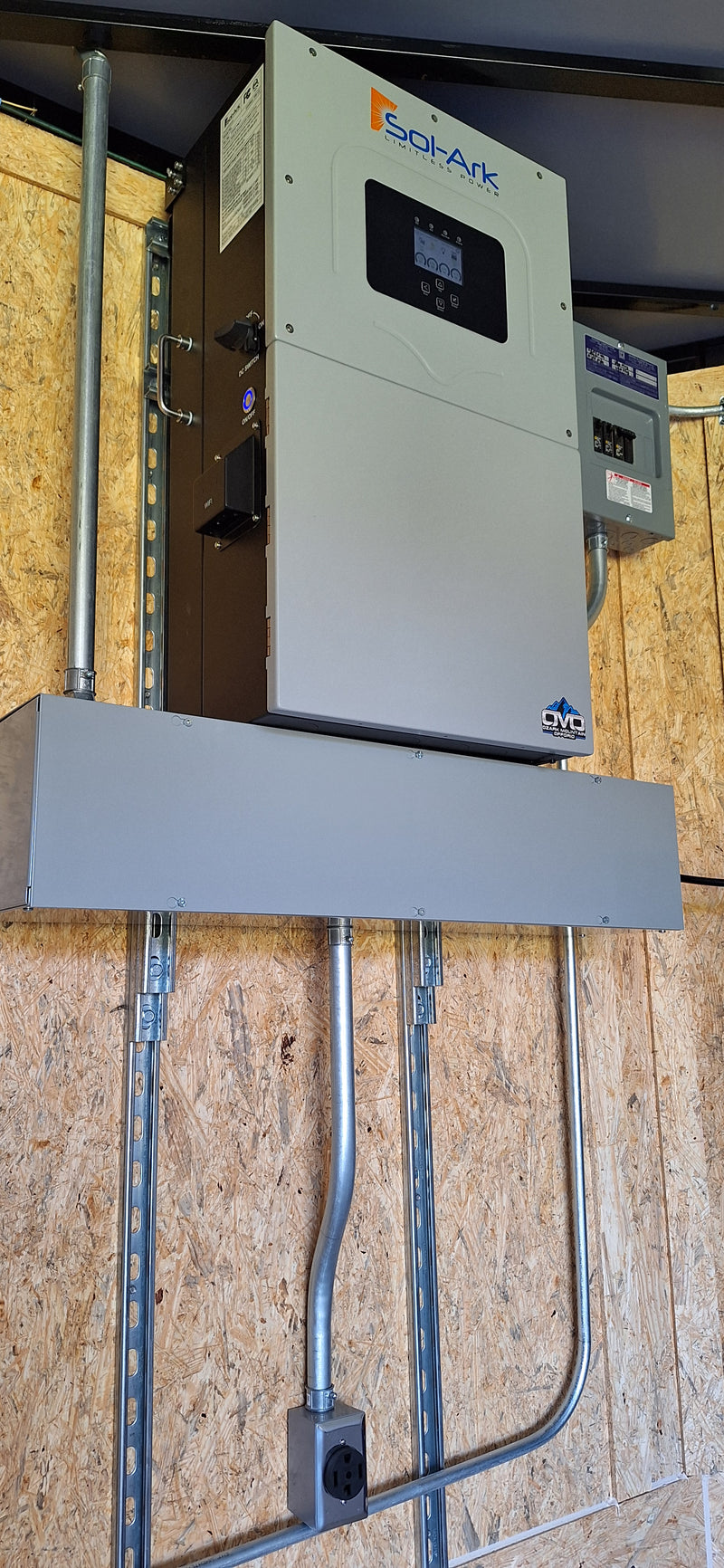

1x Sol-Ark 15K All in One Offgrid Inverter 120/240V AC
1x OMO 32KW 48V Freedom Series Heated Battery with Bluetooth and LCD Readout

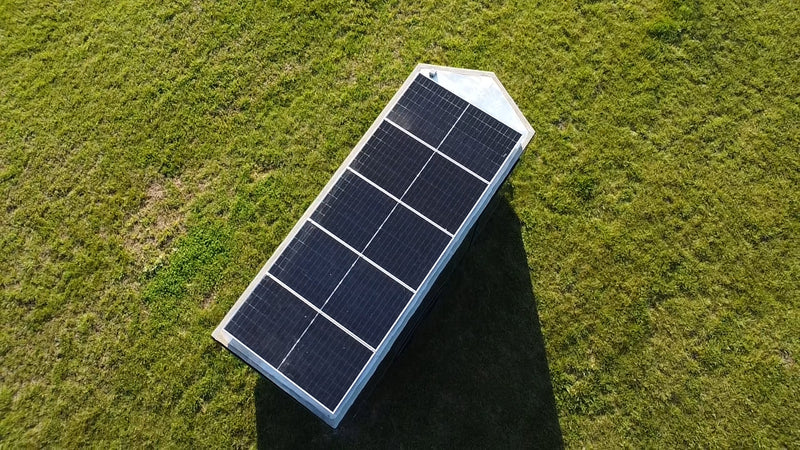

5x 550W SOLAR Panels roof mounted (2750 Watt Array)
2x PV Input Ports on Exterior - Additional Array Expansion
1x 50A Grid/Generator Input Port on Exterior of Trailer
1x 100A AC Breaker Box w/ 6x 110V Interior Standard Plugs / 1x 240V 50A Outdoor Plug
EPOXY Coated Floor

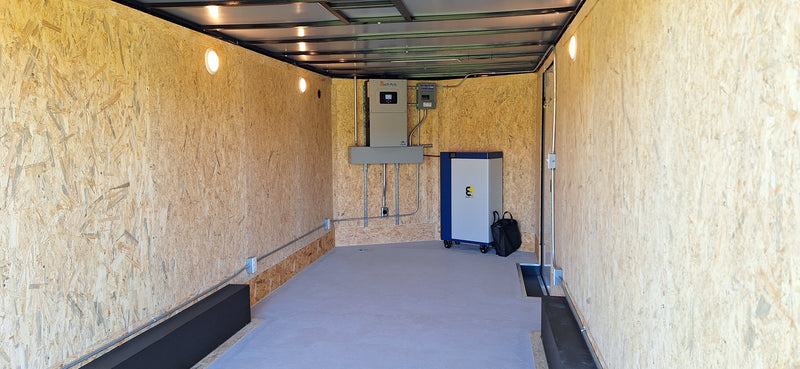

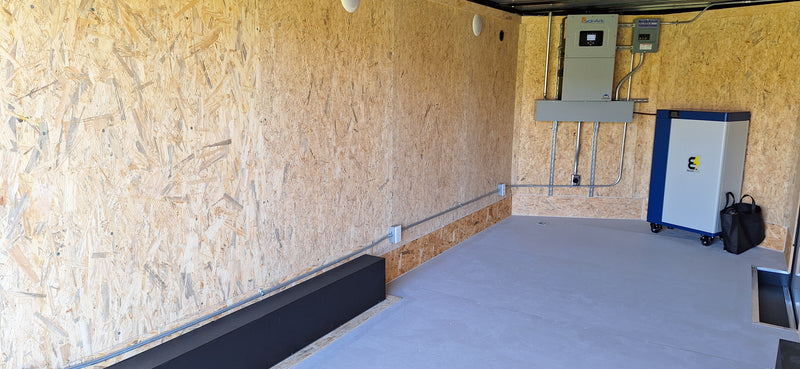

Completely wired with AC plugs throughout trailer. All runs from power generated from sun. AC Grid/Generator Input power also available on this model with 50A Port on exterior of Trailer
Price Shown is for Sol-Ark 32kWh Model. Additional custom features are available for additional cost.
- Lift Kit with larger tires for more ground clearance
- Additional portable solar array for more power generation
- Air conditioning/heat or Mini Split
- Additional Modules for increased Battery Storage
- Instant Hot Water Option
- Onboard Air Compressors
- Custom Counters and Cabinetry
- Built in Paint Booths, Hydro Processing Systems
. . . and more. Contact us to discuss your needs and OMO will build a solar trailer to meet them.
Some Pictures shown are of custom builds and add-ons.
Some Pictures show expanded battery options applied. Standard setup includes 1x OMO 32KW Freedom Series Lithium Battery Bank. Expandable up to 8x units for 256KW Battery Storage

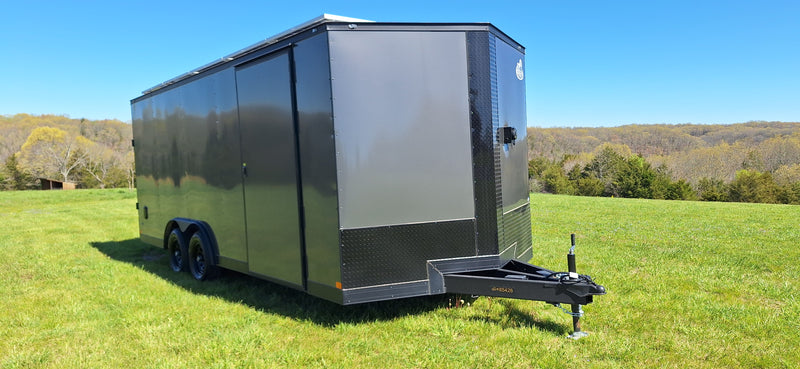

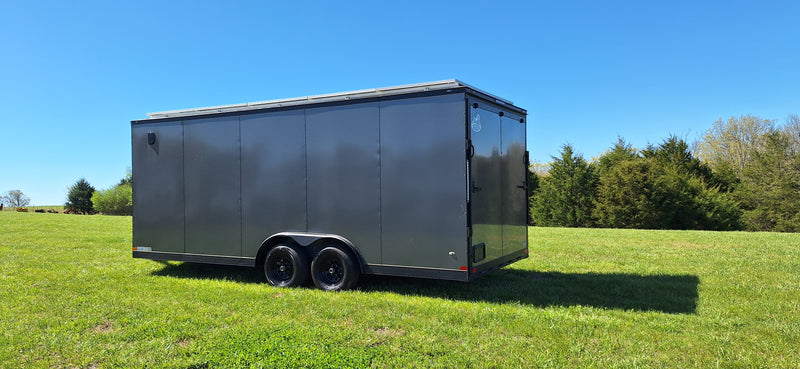

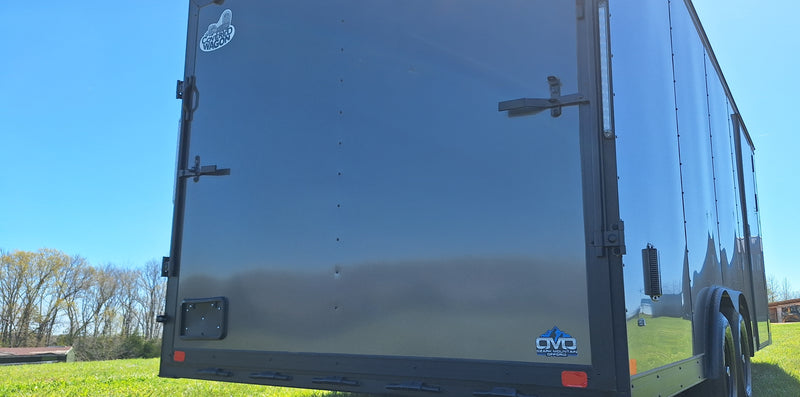

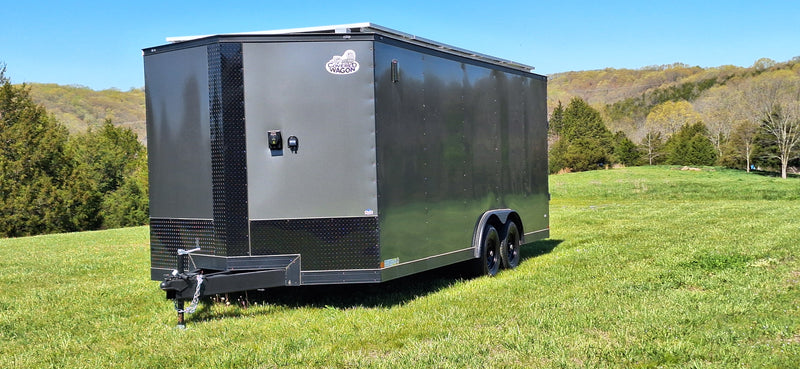

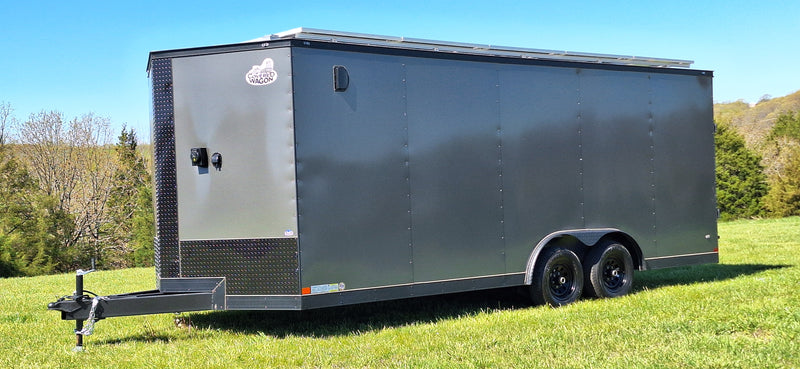

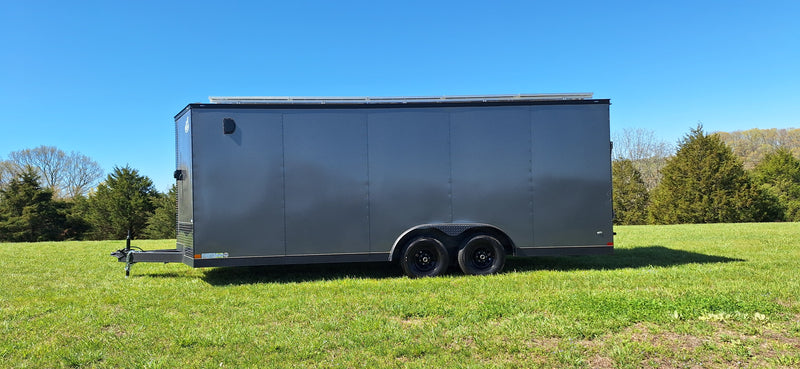

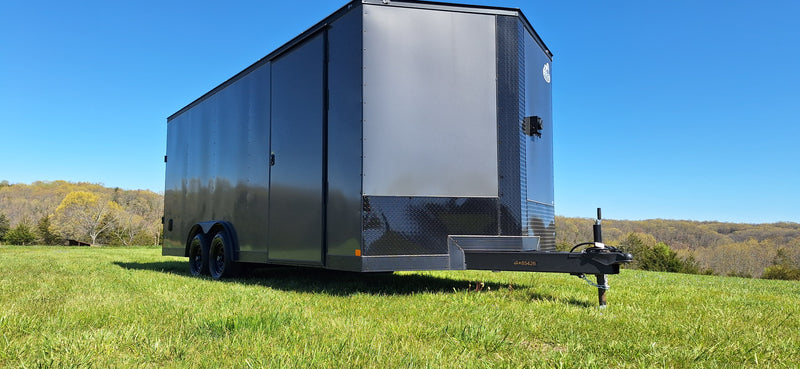

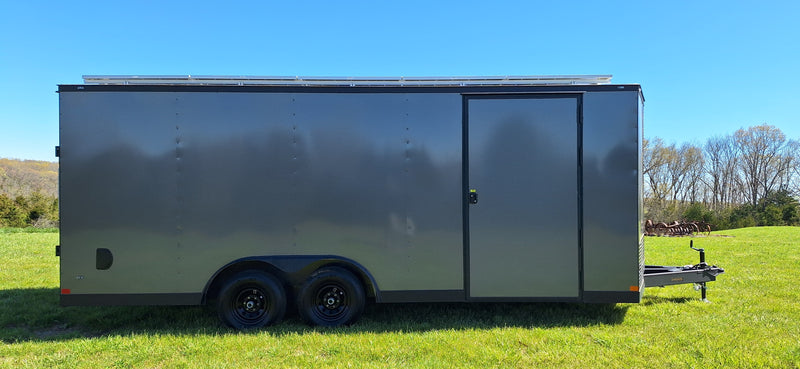

Charcoal with Black Trim - Trailer Shown in images - Other colors available.
Pickup or Shipping Available - Please Contact us for more info on Shipping .
KIT AND INSTALLATION REGION
Installation only available on select kits.
