25KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter +26.4KW Solar with Ground Mount and Wiring

25KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 26.4KW Solar with Ground Mount and Wiring

This Package is a great package for a Complete Offgrid Home. The Solar Array will produce around 118800Watts per day based on 4.5 hours sun. This size of system generally works great for larger sized homes, and etc that use around 3500 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.

This Kit can Run Without a Battery Attached. You can add a 48V Battery at any time to this Sol-Ark Inverter

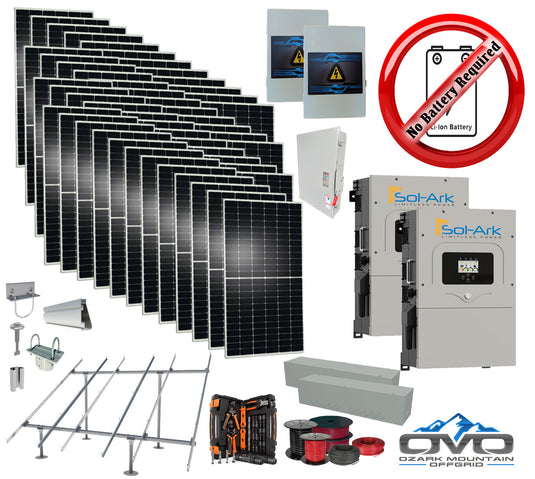

48x 550W Bifacial Mono Solar Panels (26400 Watt Array)
2x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x Complete Set of Iron Ridge GROUND MOUNT Rails / Top Caps / Rail Connectors / Fasteners and Bolts
2x Solar Combiner Box (Built for future expansion of additional panels)
2x Gutter Box
1x Spool 500' PV Direct Burial 10AWG Solar Wire
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
1x Spool 20' 4/0 AC Main Line
1x MC4 Crimp Kit

These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty

Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else

1x Installation Manual

NOTE: Installation option available. If you need installation on this kit please contact us prior to ordering for custom pricing for your area.

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty

Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
