35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter +35.2KW Solar with Ground Mount and Wiring

Vendor OMO
Regular price $54,473.00
Sale price $54,473.00 Regular price
Sale Sold out
Unit price
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

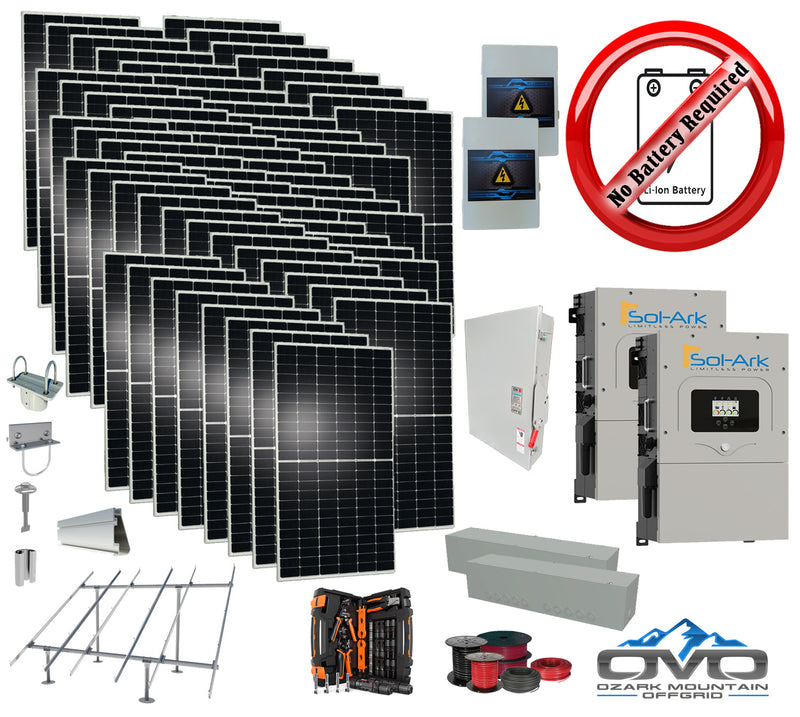

35KW Complete Offgrid Solar Kit + 2x 15K Sol-Ark Inverter + 35.2KW Solar with Ground Mount Rails and Wiring

This Package is a great package for a Complete Offgrid Home. The Solar Array will produce around 158400Watts per day based on 4.5 hours sun. This size of system generally works great for cabins, Mid -large sized homes / Farms, and etc that use around 3000-4000 KWH per month. This system is built to be scaled up for future additions of Panels or Batteries.

This Kit can Run Without a Battery Attached. You can add a 48V Battery at any time to this Sol-Ark Inverter

64x 550W Bifacial Mono Solar Panels (35200 Watt Array)
2x Sol-Ark Hybird/Offgrid All in ONE Inverter 15k 48V (Included MPPT Charge Controller built in)
1x Complete Set of Iron Ridge GROUND Mount Rails / Top Caps/ Rail Connectors / Fasteners and Bolts
2x Solar PV Combiner Box
1x 500' Spool 10AWG MC4 Solar Array Cabling
1x MC4 Crimper Tool Set
1x Spool 100' AC Output / Input / Generator Cabling - 6 AWG
1x 20' Spool 2/0 AC Main Line
2x Wire Gutter Boxes
1x AC Combiner Box Kit (2x or more Sol-ark Combination kit)

These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty

1x Installation Manual

NOTE: Installation option available. If you need installation on this kit please contact us prior to ordering for custom pricing for your area.

Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else

Sol-Ark 15K Inverter Specs
Output - 120/240 Split Phase
Can be used With or Without Batteries
48V Battery Backup Input (Flood Lead Acid Or Lithium)
Grid Tie Or Offgrid
Built in MPPT Charge Controller - 3x MPPT Inputs
Generator Support
LCD Touch Screen
WIFI Connectivity
DC Transformerless
Inverter Efficiency 97.5%
NEMA 3R Rated - (Outdoor use approved)
10 Year Warranty

Parallel Stacking up to 8 units
4MS Transfer time from Batteries to Grid Power
