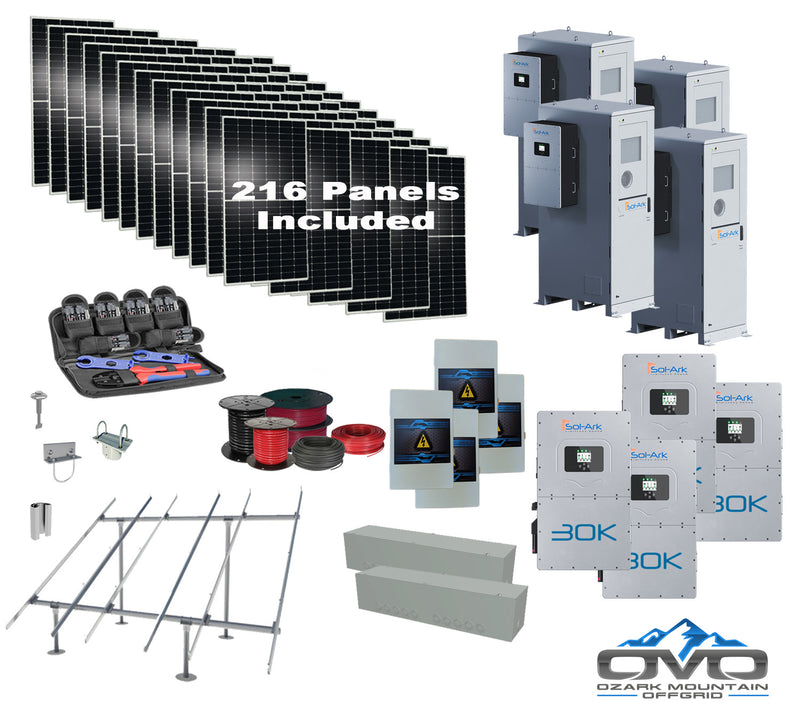

Commercial 120KW 3 Phase 208V Solar Kit + 4x 30K 208V Sol-Ark Inverter + 4x 60KW Sol-Ark Outdoor Lithium Battery +118.8KW Solar with Ground Mount and Wiring
This Package is a great solution for light commercial or high-end residential projects. The Solar Array will produce around 534600Watts per day based on 4.5 hours sun. This size of system generally works great for applications that use around 16,200 KWH per month. This Sol-Ark Three Phase system is built to be scaled up with future additions of Inverters, Panels and Batteries.
This kit includes four Outdoor (IP55 rated) Lithium Battery Banks that are climate controlled and have integrated fire suppression. They are rated for 60KW of storage power each.
216x 550W Bifacial Mono Solar Panels (118.8KW Watt Array)
4x Sol-Ark 30KW Three Phase 208V Inverter (Included MPPT Charge Controllers built in)
4x 60K Outdoor IP55 Rated Climate Controlled Lithium Battery Bank
1x Complete Set of Iron Ridge GROUND Mount Rails / Top Caps/ Rail Connectors / Fasteners and Bolts
4x Solar PV Combiner Box
3x 500' Spool 10AWG MC4 Solar Array Cabling
1x MC4 Crimper Tool Set
3x Spool 100' AC Output / Input / Generator Cabling - 4 AWG
3x 20' Spool 2/0 AC Main Line
4x Wire Gutter Boxes
1x AC Combiner Box Kit
These Solar Panels are BiFacial with Double Glass. Bifacial technology enables additional energy harvesting from rear of panel (up to 25% more). These will produce more power output in weak light conditions, such as cloudy, hazy or early morning conditions. These panels offer High Wind and snow resistance loads as well. 5400 PA Snow Load / 2400 PA Wind Load. They have a 30 Year Power Warranty
NOTE: Installation option available at additional cost. Please contact us prior to ordering for custom pricing for your area.
Ground Mount System built based on 3" Pipe setup. Customer will source 3" sch 40 Pipe Locally, we supply everything else.
Sol-Ark 30K-3P-208V Specifications
|
Solar |
Input Power 39,000W |
|
Max Allowed PV Power |
39,000W |
|
Max PV Power Delivered to Battery & AC Outputs |
30,000W |
|
Max DC Voltage (Voc) |
500V @ 36A |
|
MPPT Voltage Range |
170-500V |
|
Starting Voltage |
150V |
|
Number of MPPT |
4 |
|
Max Solar Strings Per MPPT |
2 |
|
Max DC Current per MPPT (Self Limiting) |
36A |
|
Max AC Coupled Input into the GEN terminal (Micro / String Inverters) |
54kW w/ no PVc ** 30kVA w/ 39kW PVDc |
** Software Limitation: 180A x 120V x 3
|
AC Output Power 30,000W On & Off-Grid |
|
|
Connections |
120V / 208V Three Phase |
|
Continuous AC Power with PV |
30,000W 83.4A (208V) |
|
Continuous AC Power from Batteries |
30,000W 83.4A (208V) |
|
Surge AC Power | 7 sec |
45,000VA | 125A (208V) |
|
Parallel Stacking |
Yes-Up to 12 |
|
Frequency |
60/50Hz |
|
Continuous AC Power with Grid or Generator |
72,000W 200A L-L (208V) 36,000W 200A L-N (120V) |
|
|
|
|
CEC Efficiency |
96.5% (Peak 97.5%) |
|
Idle Consumption Typical -No Load |
60W |
|
Sell Back Power Modes |
Limited to Household/Fully Grid-Tied |
|
Design (DC to AC) |
Transformerless DC |
|
Response Time (Grid-Tied to Off-Grid) |
5ms |
|
Power Factor |
+/- 0.8 - |
KIT AND INSTALLATION REGION
Installation only available on select kits.
